Remote Control Electric Double Curtain Rods CL200T-Dual

Remote Control Electric Double Curtain Rods are primarily used when both curtains and sheers are required in the same window. The tracks are slim and compact with a space saving design that makes it ideal for dual track applications. The dual track is made up from two single tracks and dual mounting brackets. Curtains and sheers can be set up and operated either independently or grouped together. Each track can be set up to open/close from left to right, right to left, or center to both sides. The motors can be mounted on either left or right side. The dual track can be mounted on either the ceiling or the wall.

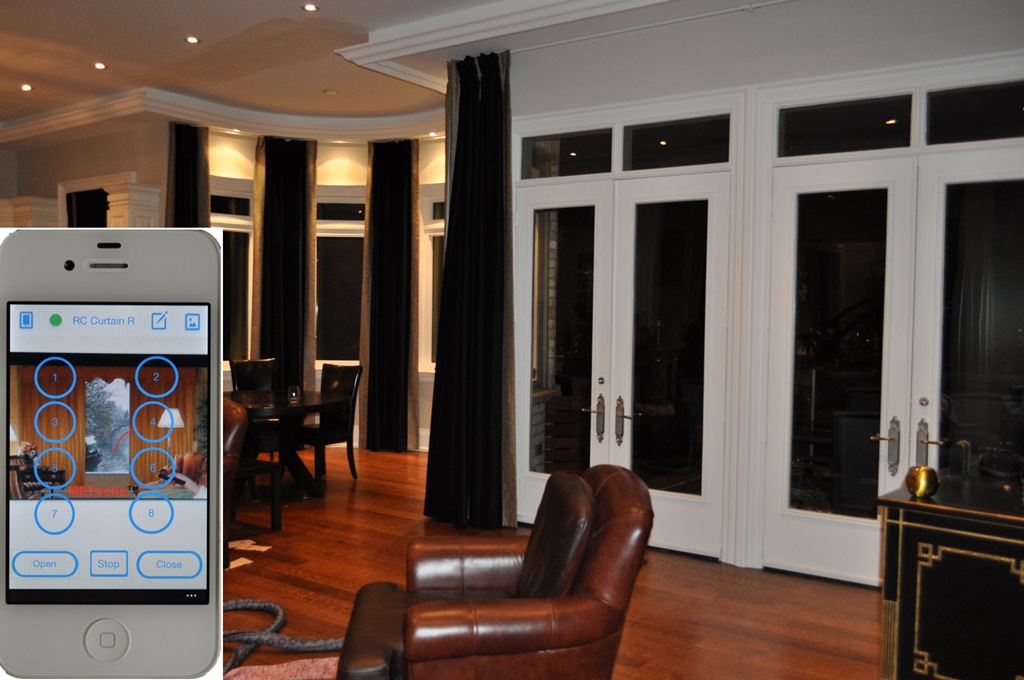

The motor's built-in overload protection is safe and reliable. The integrated clutch system releases the drive head when the motor is not running, so it will save power and make it easy to manually open/close curtain with just a finger. The 12VDC drive engine runs quietly and can be powered by a 12V battery when power is not available. Battery pack is not included. The curtain motors are truly a core part of your home automation or smart home. Built-in third-party controlling interface makes it easy to integrate into other controllers, like Smart control WSCtrl, METechs Smart Home Hub, Control 4, PLC, ZigBee, Z-Wave, X10, and others. It can be controlled by remote (included), control pad (included), wall switches, METechs timers, third-party controllers, and smartphones and tablets with an add-on module. It can also be controlled with your existing universal learning remote, like Logitech remote, X10 remote, and other universal remotes.

Order tips: METechs motorized curtain tracks are designed for a worry-free purchase and flexible installation. METechs motorized curtain tracks are semi-assembled from the factory with a center open/close orientation; however, left or right orientation can be easily changed during installation. The track can be cut down to fit the measurements of your project; just order the next longer size track than the measured size. Mount hardware and remote controller are included in the package; this is a ready-to-go kit! Curtains and sheers are not included.

Features

One remote controller operates up to 8 sets of units without interfering with each other
Open/close curtains with a remote controller, control pad, hand, smartphone with METechs module or Smart control WSCtrl, or any other controller
Automatically stops when the curtain is fully open/close without position setup
Stop at any preferred position by pressing "STOP"
Overload protection within 30 seconds
Open/close curtain by hand any time or while power is off
Simple and easy DIY installation with screwdrivers
Safe and reliable design with a 12VDC power adapter with UL or GS approval
Open/close from center, left, or right
The motor can be mounted at either left or right end
Light, strong, and beautiful aluminum track
Works with all types of curtain fabrics or draperies
Slim motor is easily hidden behind the curtain; it looks no different than a regular manual track
The track can be cut down to any size
Can be installed on wall or ceiling
Ready-to-go kit (curtains and sheers are not included)

Specifications

Input voltage: 120V AC/60Hz or 230V AC/50Hz; UL, CUL approval
Output voltage: 12V DC
Operation power: 12W
Standby power: 0.1W
Torque: 18.6lbf.in (2.1N.m)
Motor speed: 240RPM
Average Running Noise level: 44db (quiet operation)
Maximum remote distance: <40ft (12M)
Maximum track load: 33lbs (15kg) per 39" (1M) track
Maximum total load: 100lbs (45Kg), actual load depends on mount and setup
For wall mount, the distance off the wall for wall mount only: adjustable between 0.25" to 3.25" for INNER track
For wall mount, the distance off the wall for wall mount only: adjustable between 2.5" to 5.5" for OUTER track
For ceiling mount, no restriction for the distance between to track or windows
Minimum space between end track and wall (where applicable): 0.5" (1.25cm)
