DIY Retractable Screen shade Motorized Lift Drive Kit

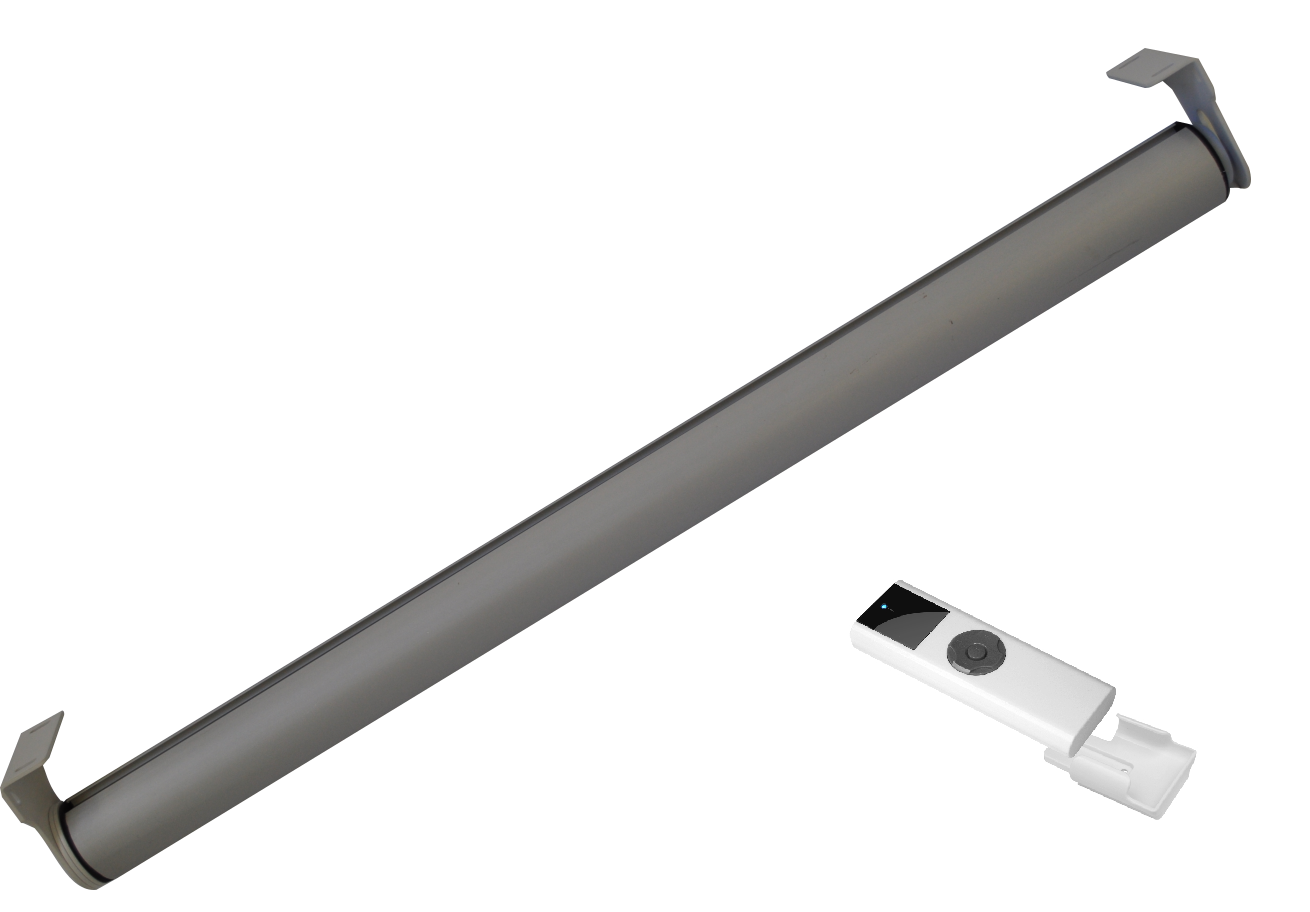

The DIY Retractable Screen Shade Motorized Tube lift kit includes a motor and the selected length of CL338T-D40NB tube. This kit does not come with a remote! It is a great choice for retractable side protection for golf impact screen U or L shape layout. The motors use same remote and can be controlled by a touch button. It also widely used for motorized roller shades and blinds, Roman shade, shutter, electric Austrian curtains, and other tubular types of automation light duty applications. One motor can also be coupled to drive multiple tubes by joining two or more tubes with joiners.



Order tips: This kit is designed for a worry free purchase and flexible installation. Motor can be installed either right or left. The tube can be easily cut down to fit the measurements of your project. Just order the next longer size than your measured size. We will cut down to your size for free if you make note when you place an order.



As side protections in U shape layout

As side protections in L shape layout



Features

• Slim design prevents sun light from coming through the installation gap (1/2" on each side)
• Can be mounted on ceiling, wall, or any other angled surface
• Motor runs quietly and remains silent on standby
• Can be operated by a timers, wall switches, smartphones, or voice-controlled by Google assistant or Amazon Alexa with a SmartCtrl-MA Wi-Fi module
• Group control to run multiple motors up or down simultaneously or individually
• Stops at any position by pressing "STOP" button
• Double hall feedback sensor for precise position
• Programmed upper/lower positions and 1 middle favorite/play positions will remain when power is off

Specifications

• Operation voltage: 110 to 240 AC
• Operation power: 19W
• Protection Class: IP44
• Rated RPM: 30/38
• Rated Torque: 14in.lb (1.6N.M)
• Frequency: 868MHz
• Noise: 25-40db
• Working tube size: 1 1/2" (38mm)
• Maximum load with 1 1/2" tube < 17.6lbs (8Kgs)
• Minimum width: 18"
• Maximum width: 142"
• Approximate inside mount fabric deduction: 1"
• Minimum inside mounting depth: 3/4”
• Fully recessed depth: 2” – 3”

Package Content

• One tubular motor CL625E-0222
• Mount brackets
• Drive adapter and idler 1 5/8"(38mm)
• Selected length size 1-5/8" (40mm) tube CL338T-D40NB
• Instruction booklet

Frequently Bought Together

• Wireless RF Remote for METechs CL600 Series Motors
• SmartCtrl-MA Wi-Fi module
• Link two tubes at 90° joiner CL338T-D40J90
• Link two tubes at 135° joiner CL338T-D40J135
• Link two tubes at 180° joiner CL338T-D40J180
• Lift Wheel pulley for tube size 1-5/8" (40mm)
• Projection or golf impact screen fabric
• Aluminum Roller Shade Blind Bottom Weight Bar BAR-HM38
• Large Heavy Duty DIY Retractable Golf Impact Screen Drive

Note: We offer completed sets of made-to-order motorized roller shades. We cut your chosen fabric to your given size and attach it to rods and bottom weight bars. They are ready to go kits. You just install them with simple tools. We have a range of light and privacy controlled options of fabric as well as colors and textures. Click the link to see the choices of fabric. One motor kit can operate two or more rods when using joiners. Contact us for custom motorized roller shade kits.
